Getting started

First steps with Mosaic

This documentation will present you details how to work with Plone Mosaic through the web and within a package. If you haven’t done it yet, please read the README.rst to learn about the concepts in Plone Mosaic, the requirements for the installation, the projects status and how the development process of the product works.

Installation and activation

Plone Mosaic is installed like any other Plone add-on with buildout. It has several dependencies that need to be installed in specific versions. Please check installation notes.

Note

Check Enable Mosaic Site Layouts if you want to use Mosaic Site Layouts on top of Content Layouts.

After the installation it needs to be activated in the Add-on control panel.

_images/mosaic-product-activated.png

Even with Plone Mosaic installed and activated the Plone site should look and behave normal. But now it is possible to add tiles to each page and get them rendered through the Plone Mosaic composition chain.

Note

If something breaks just by installing Plone Mosaic, it’s probably a bug and it should be reported as such.

Mosaic Layout

In this section we will look at the Layout-behavior of Plone Mosaic. It needs to be enabled in the display menu of a content item. To follow along create a document and after saving it, set the Display option to Mosaic layout.

_images/mosaic-custom-layout-enable.png

How the current content looks after the first time the Mosaic layout is enabled depends on the configured defaults for its portal type. Still, at least the title and the description should always be displayed.

_images/mosaic-custom-layout-enable-done.png

Mosaic editor

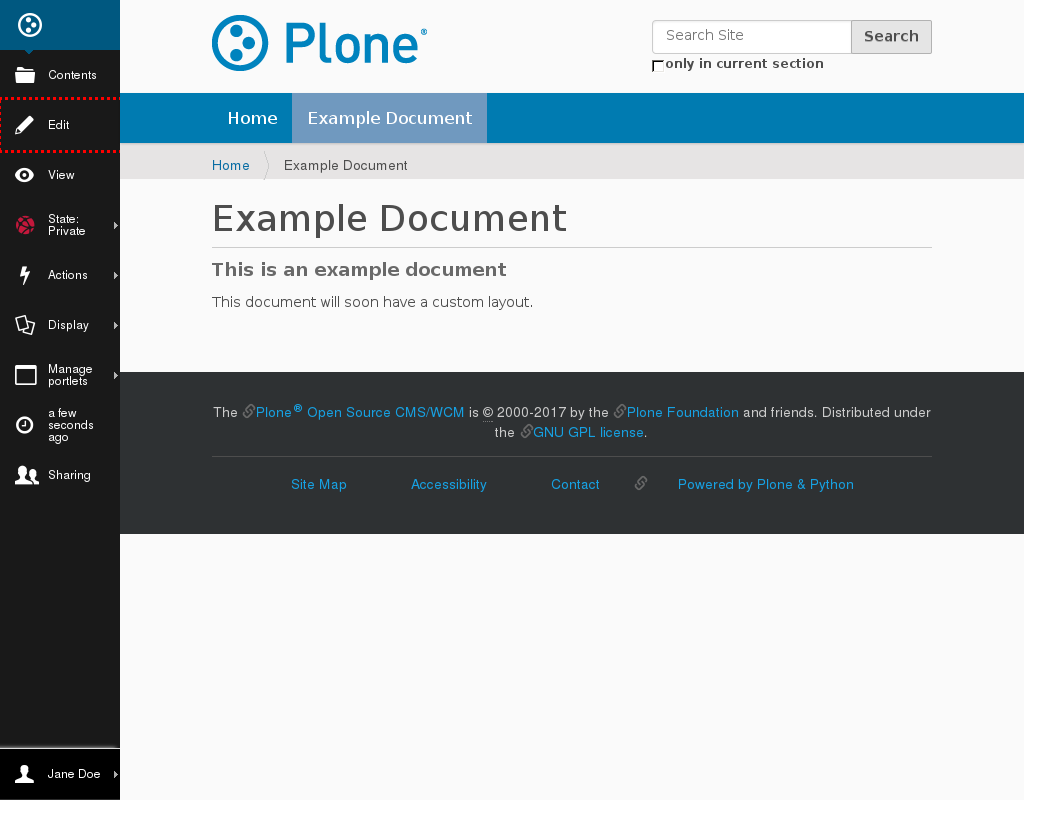

When the Mosaic layout has been enabled, the Mosaic editor is opened by clicking the Edit tab.

_images/mosaic-editor-open.png

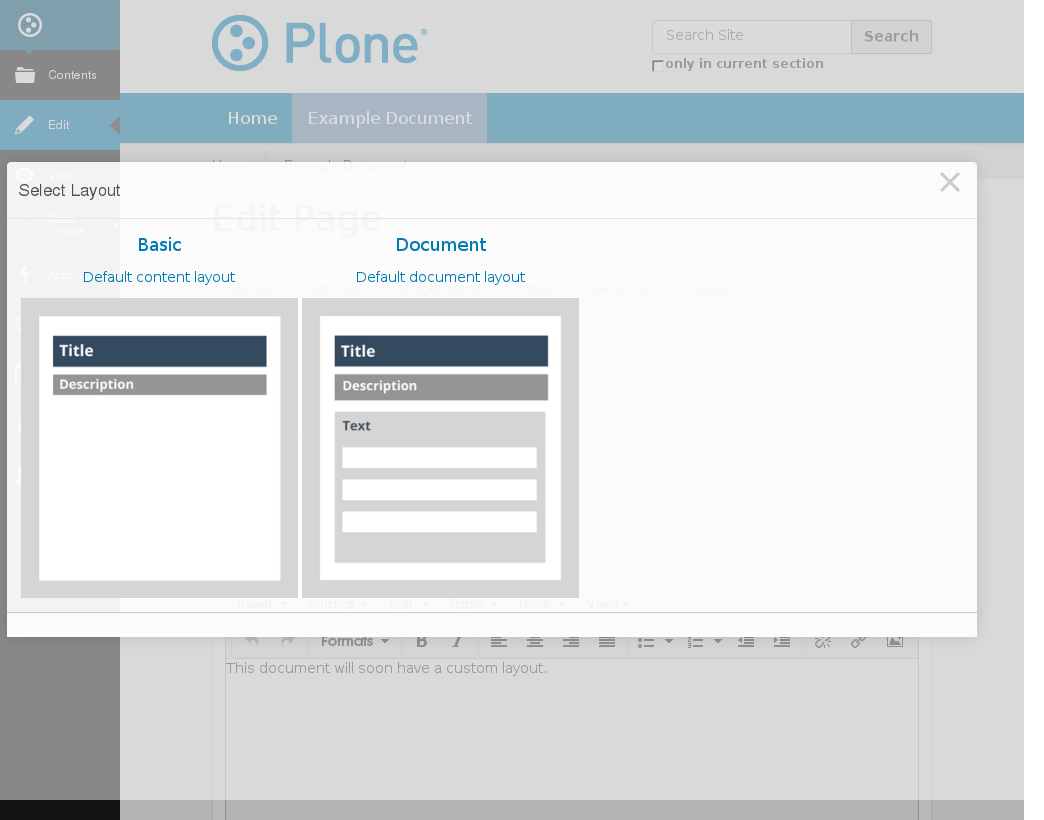

When the editor is opened for the first time, it asks to the select the initial layout for the content:

_images/mosaic-editor-layout-selector.png

The selected layout can then be used as it is, or it can be customized by adding, removing and formatting tiles. How to achieve this will be described later on.

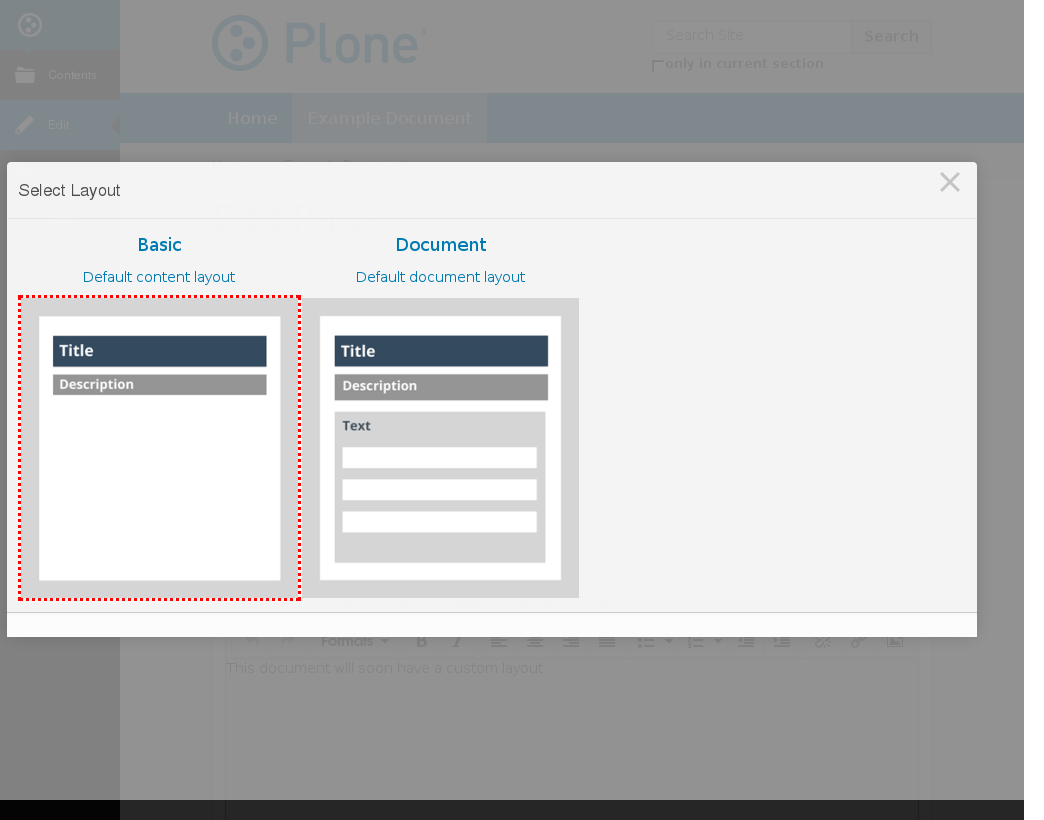

Let’s select the basic layout:

_images/mosaic-editor-layout-selector-select.png

Now the toolbar of the Mosaic Editor will appear on top. The buttons Save and Cancel belong to the current Edit action of the content. With them you can either save or discard the canges that were made to the current content element.

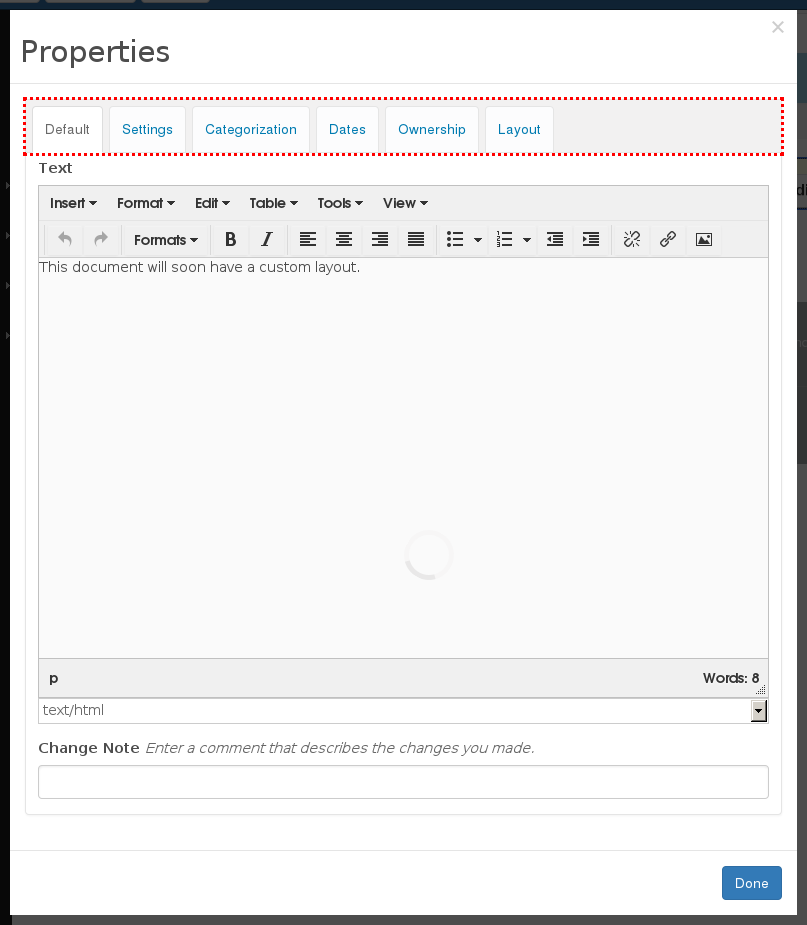

The button Properties opens a form where you can edit several properties of the content element, like the publishing date or the short name.

_images/mosaic-editor-properties-modal.png

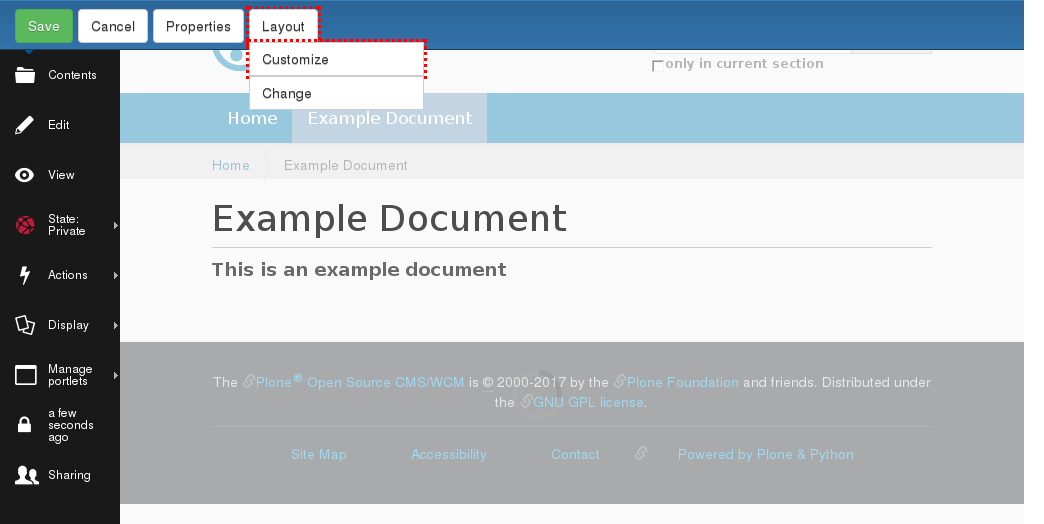

The dropdown Layout has the two options Change and Customize. Change opens the form where you can choose another layout from all available layouts.

With the option Customize you enable the current layout for customization, i.e. two new dropdowns Insert and Format appear and allow to add new tiles and format existing ones.

_images/mosaic-editor-customize.png

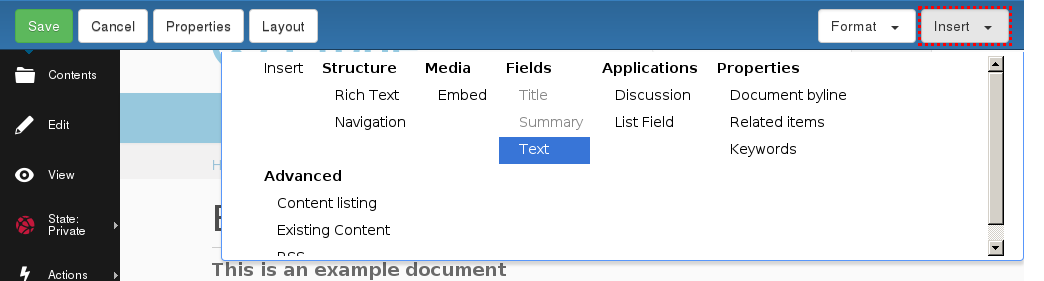

To add a new tile in the Mosaic editor, select the “Text” tile from the Insert menu. An overview about all available standard tiles refer to the Mosaic Tiles part of this documentation.

_images/mosaic-editor-select-field-text-tile.png

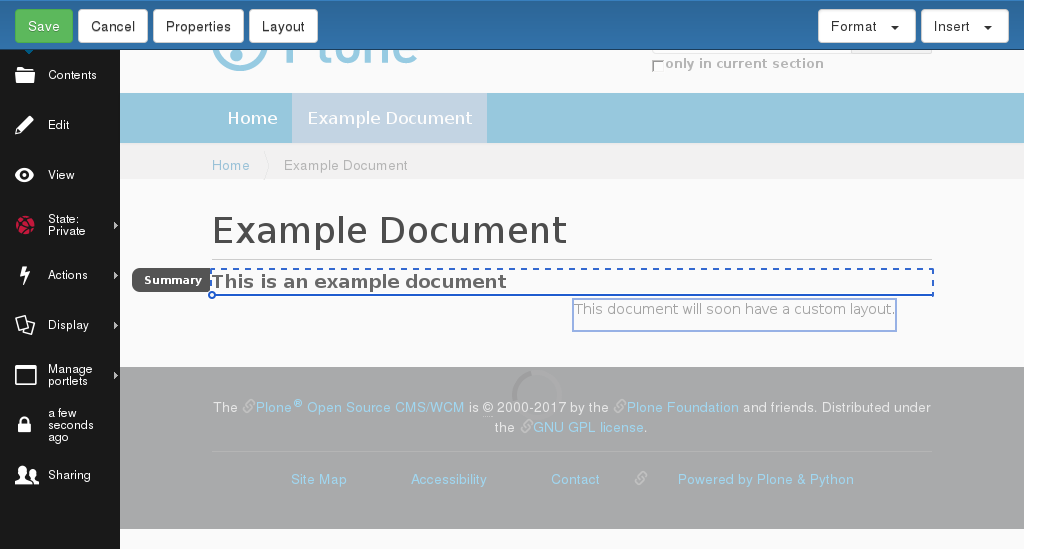

and drag the appearing tile into the desired position.

_images/mosaic-editor-drag-field-text-tile.png

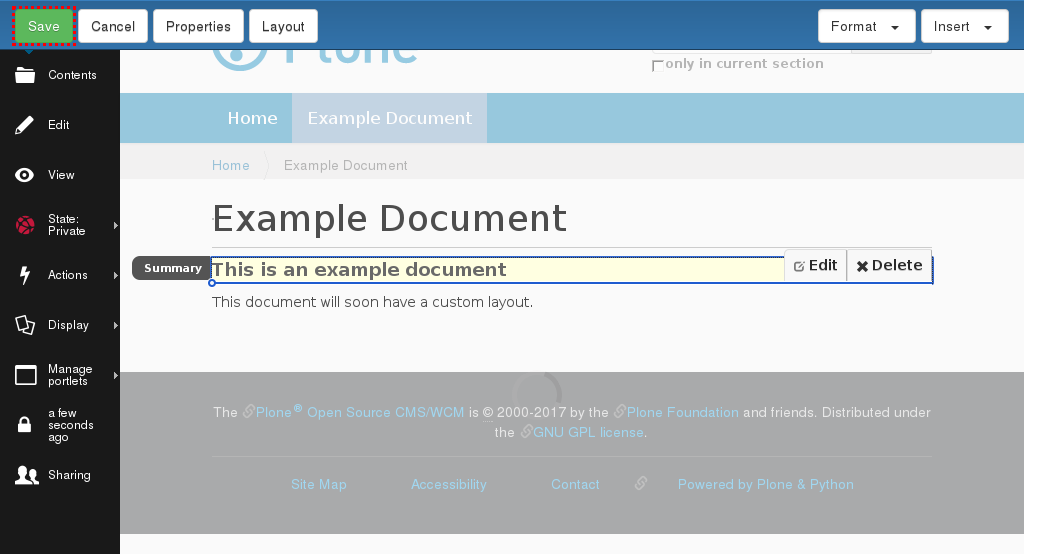

Finally, a mouse click drops the tile into selected position and the page can be saved.

_images/mosaic-editor-drop-field-text-tile.png

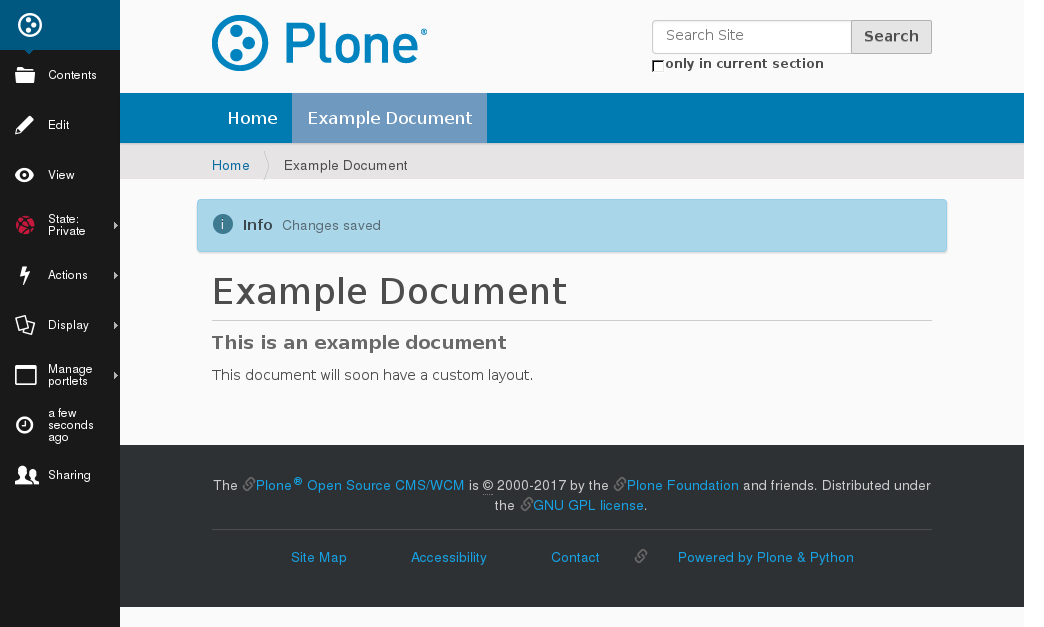

That’s how we can build custom content layouts using Plone Mosaic.

_images/mosaic-page-saved.png

Note that this costum layout is saved for the current content element. The Layout dropdown now has the button Save instead of Customize. With this you could save the layout for the whole site and make it available for other content elements. You can find more information about this in the sectionXXX.

ToDo Screenshot with Layout dropdown showing Change/Save focus on Save

The button Change will open up the Select Layout form again and all the customizations you made on the page will be discarded.

ToDo Screenshot discard current custom layout on form
